RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

Name: RG6UCAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV
Brand: OEM Produce
Price: 1 USD

Buy cheap RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV product

Brand Name : OEM Produce

Model Number : RG6 CATV Coaxial Cable

Certification : CE. ROHS.

Place of Origin : Hangzhou, China

MOQ : 10km

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

Packaging Details : 100M. 200M. 300M. 1000FT. 500M. Reel

Type : 2RG6 Quad+2CAT5E

Number of Conductors : 1

PVC Color : OEM Manufacturer

Packing : OEM Manufacturer

Feature : 75 Ohm Coaxial Cable with Lan Cable

Contact Now

2RG6 Quad+2CAT5E 75 Ohm Coaxial Cable with Lan Cable CATV CCTV OEM Manufacturer

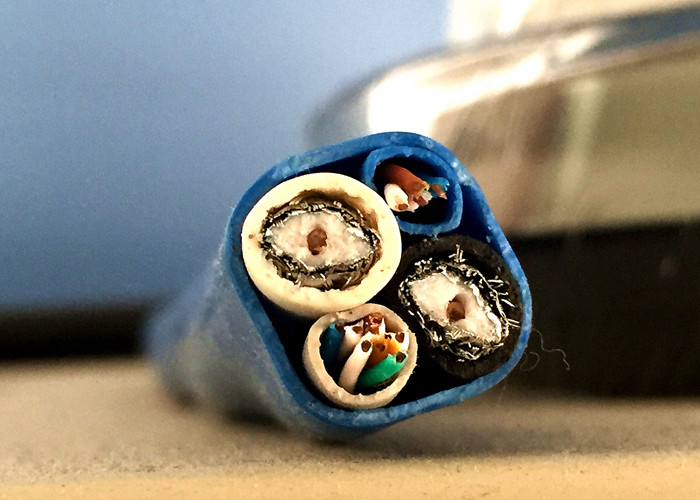

2RG6+2CAT5E Combo cable

2RG6 Standard

Construction	Material	Diameter(mm)
Inner Conductor	BC	1.02
Dielectric	Foam PE	4.57
First Shield	Bonded AL Foil	18
Second Shield	AL Braid	48%
Third Shield
Outer Jacket	PVC	6.9

2RG6 CAT5E

Construction	Material	Diameter(mm)
Inner Conductor	BC	0.51/ 24AWG
Dielectric	Solid PE	0.91
First Shield
Second Shield
Third Shield
Outer Jacket	PVC	5.1

Electrical Characteristics

Impedance (Ω)	75±3
Capacitance (pF/m)	52±2
Velocity of Propagation(﹪)	85.0
Return Loss 5-1000MHz(dB)	≥22
Return Loss 1000-3000MHz(dB)	≥20

Attenuation(@20℃)

Frequency (MHZ)	Min Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.6	1.9
55	1.6	5.2
187	2.8	9.3
211	3.0	10.0
400	4.1	13.5
500	4.6	15.0
750	5.6	18.5
860	6.1	20.0
1000	6.6	21.5
1500	8.2	26.8
1800	8.8	28.9
2200	9.8	32.2
3000	11.5	37.6

RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com

Product Tags:

satellite coax cable

75 ohm bnc cable

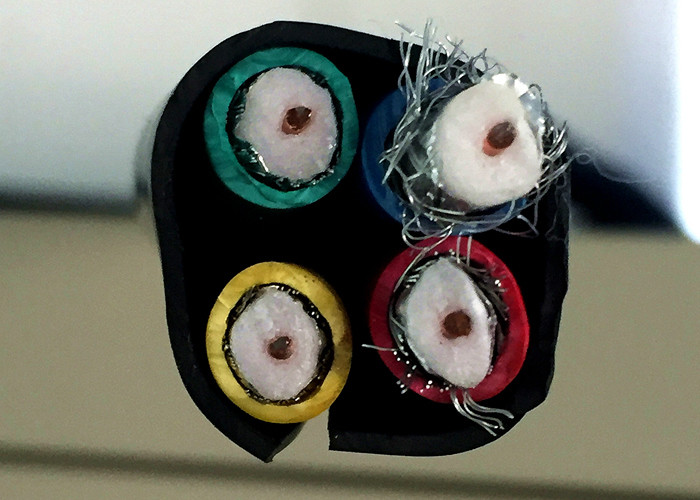

RG6U+CAT5E 75 Ohm Coaxial Cable 4 Core Complex With Lan Cable CATV CCTV Images
