EFON MGXTW Outdoor Fiber Optic Cable with Special Tube Filling Compound
EFON MGXTW Uni-Tube Mining Flame-Retardant Optical Fiber Cable
Description

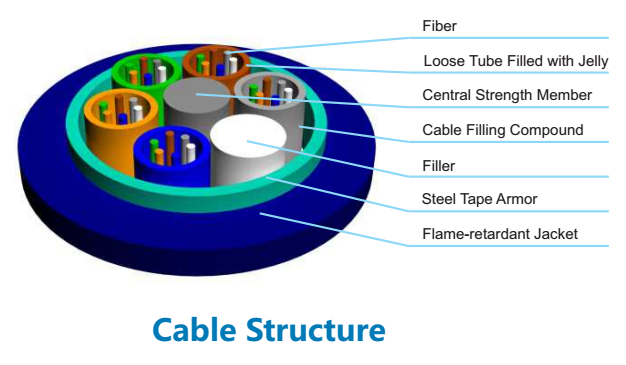

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of steel tape armor longitudinally. Between the steel tape armor and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a flame-retardant jacket.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D
Features
Good mechanical and temperature performance. High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber. Special jacket material ensures excellent flame-retardant performance. Crush resistance and flexibility.
Steel tape armor enhancing moisture-proof.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and friendly installation.
Long delivery length.
Standards
EFON MGXTW cable complies with Standard YD/T 769.
Optical Characteristics JET
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm |
| Attenuation(+20℃) | 850 nm | | | ≤3.0 dB/km | ≤3.3 dB/km |
| 1300 nm | | | ≤1.0 dB/km | ≤1.0 dB/km |
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | | |
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | | |
| Bandwidth | 850 nm | | | ≥500 MHz·km | ≥200 Mhz·km |
| 1300 nm | | | ≥500 MHz·km | ≥500 Mhz·km |
| Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | | |
Structure and Technical Specifications
Fiber
Count | Nominal
Diameter
(mm) | Nominal
Weight
(kg/km) | Allowable Tensile Load(N) | Allowable Crush Resistance(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~12 | 7.8 | 172 | 3000 | 1000 | 3000 | 1000 |
| 14~24 | 8.5 | 215 | 3000 | 1000 | 3000 | 1000 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
