Duct and Aerial Optical Cable GYFTY Outdoor Fiber Optic Cable
Armored Loose Tube Single Jacket/ Single Armore Cable
Temprature Range
Operating: -40℃ to +70℃
Storage:-50℃ to +70℃
Installation: -30℃ to +70℃
Bending Radius:
Static: 10D
Dynamic: 20D
Description:
Loose Tube Single Jacket All Dielectric Cables are lightweight with small diameter and designed for duct and aerial(lashed) installation.
Features:
Up to 288Fibers
Loose tube gel-filled construction for superior fiber protection.
All dielectric structure
UV and Moisture resistant design.
Applications:
Backbones and Access.
Installed in ducts, lasher and aerial.

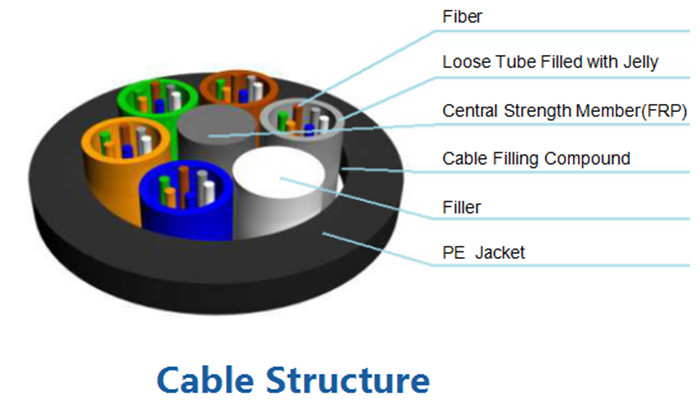

Structure and Technical Specifications GYFTY(2-288F)
| Fiber Count | Nominal Diameter(mm) | Nominal Weight(kg.km) | Max Fiber Per Tube | Max No. of Tubers+Fillers | Allowable Tensile Load(N) | Allowable Crush Resiatance(N/100mm) |
| Short Term | Long Term | Short Term | Long Term |
| 2~36 | 9.6 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 10.2 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 11.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 13.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
| 122~144 | 14.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
| 146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
| >216 | Available upon customer`s reuest |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
