5 Core Combo RG6 75 Ohm Coax Cable, RG6 Coax Cable Ultimate High Digital

  • 1
  • 2
  • 3

Brand Name : OEM Produce

Model Number : RG6 CATV Coaxial Cable

Certification : CE. ROHS.

Place of Origin : Hangzhou, China

MOQ : 10km

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

Packaging Details : 100M. 200M. 300M. 1000FT. 500M. Reel

Type : 4RG6 Combo CATV 75 Ohn Coaxial Cable

Number of Conductors : 1

PVC Color : Customized

Packing : Customized

Contact Now

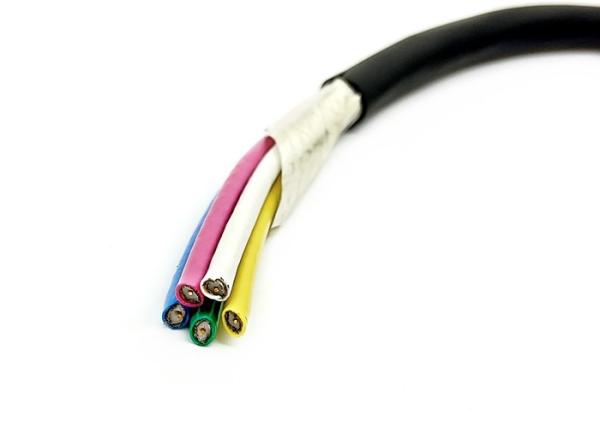

5 core Coax Cable Stranded Combo Cable

Satellite System Ultimate High Digital Cable



Construction Material      Diameter(mm)
Inner Conductor    BC     1.02
Dielectric    Foam PE         4.57
First Shield       Bonded AL Foil       18
Second Shield       AL Braid     48%
Third Shield
Outer Jacket    PVC      6.9

Electrical Characteristics

Impedance (Ω)       75±3
Capacitance (pF/m)    52±2
Velocity of Propagation(﹪)   85.0

Return Loss   5-1000MHz(dB)

 ≥22

Return Loss  1000-3000MHz(dB)

≥20



Attenuation(@20℃)

Frequency (MHZ)   Min Attenuation (dB/100ft)   Max Attenuation (dB/100m)
 5 0.6 1.9
55 1.6 5.2
187 2.8 9.3
211 3.0 10.0
400 4.1 13.5
500 4.6 15.0
750 5.6 18.5
860 6.1 20.0
1000 6.6 21.5
1500 8.2 26.8
1800 8.8 28.9
2200 9.8 32.2
3000 11.5 37.6
